Integrate real-time, one-second meteorological data into your SCADA (Supervisory Control and Data Acquisition) system.

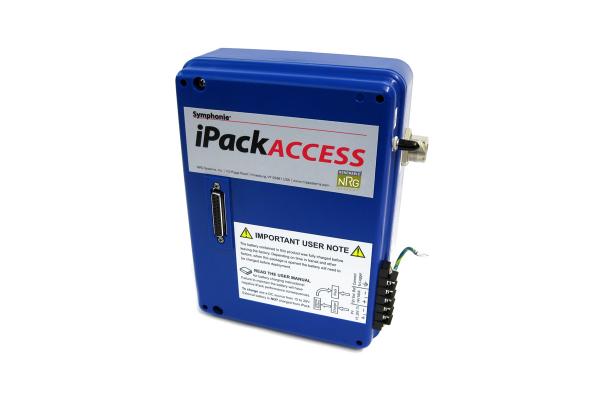

iPackACCESS is a communications module for the SymphoniePLUS3 Data Logger that enables wind farm operators to integrate real-time, one-second meteorological data into their SCADA (Supervisory Control and Data Acquisition) systems.
In addition to real-time data, iPackACCESS calculates statistical data at user-selected intervals. Data are delivered to pre-defined Modbus registers. With no coding required, iPackACCESS offers ease-of-use and data security by limiting access to defined IP addresses.
Note: The iPack voltmeter SCM is now included in SymphoniePLUS3 data logger kits. SymphoniePRO includes built-in monitoring of the 12V power supply and does not require a separate interface module.
|Symphonie iPackACCESS (#7169)|
|Accessory type||SCADA-enabled communications module for the SymphoniePLUS3 data logger|
|Instrument compatibility||SymphoniePLUS3 data logger|
|Software||Configured with Symphonie Data Retriever (SDR)|
|Batteries||One (1) built-in 12V Sealed Lead-Acid (SLA) battery with 2200 mA-hr rating|
|External power input||12-14V DC (Continuous: 100mA, Max 200mA)|
|External solar input||15-28V DC (Continuous 100mA, Charging Max 750mA)|
|Other||Power for attached sensors is not included in these values|
|Mounting||iPackACCESS stacks with SymphoniePLUS3 data logger on long logger mounting screws|
|Accessories||Weather-proof Ethernet cable boot, and GPS antenna included|
|Dimensions||165 x 222 x 102 mm (6.5 x 8.75 x 4.0 inches)|
|Enclosure||Weather-proof polycarbonate plastic|
|Computer||Windows PC with Symphonie Data Retriever (SDR) required for programming of iPackACCESS settings.|
|Operating system||Symphonie Data Retriever (SDR) requires Windows 95 or higher|
For Software downloads and details click here
