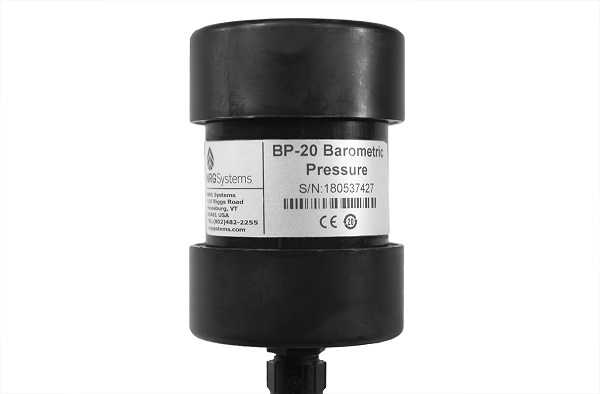

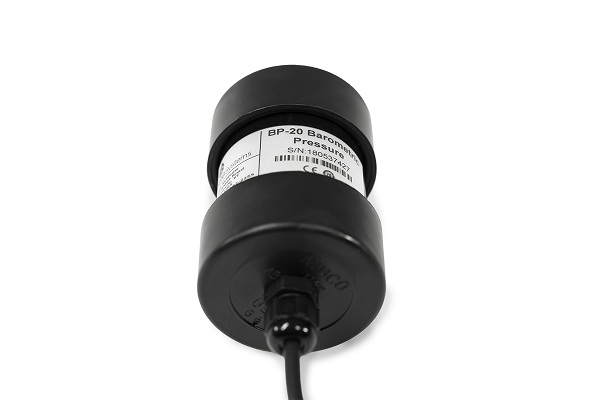

A micro-machined absolute pressure sensor, the BP20 provides a high-level voltage output signal that is proportional to absolute pressure.
#2046
The BP20 pressure sensor includes built-in temperature compensation, linearization, and an output amplifier. Its low cost and rugged ABS enclosure make the BP20 ideal for collecting absolute pressure data at remote sites.
| BP20 Barometric Pressure Sensor (#2046) | |
|---|---|
| Description | |
| Sensor type | Micromachined integrated circuit absolute pressure sensor |
| Applications |
|
| Sensor range | 15 kPa to 115 kPa (4.43 inches to 34.0 inches Hg) |
| Instrument compatibility | All Symphonie Data Loggers |
| Output signal | |
| Signal type | Linear analog voltage |
| Transfer function | Absolute Pressure in kPa = (Voltage x 21.79) + 10.55 typical |
| Accuracy | +/- 1.5 kPa (15 mb) max. uncorrected offset (+/- 0.443 inches Hg) |
| Calibration | Calibration sheet included with each sensor specifies offset correction |
| Turn on time | 15 ms |
| Power requirements | |
| Supply voltage | 7 V to 35 V DC |
| Supply current | 15 mA max. (8 mA typical) |
| Installation | |
| Mounting | Mounts directly to tower or inside steel shelter box with hose clamps (included) |
| Tools required | 8mm (5/16 inch) nut driver or flat blade screwdriver |
| Environmental | |
| Operating temperature range |
|
| Physical | |
| Connections |
Wire leads, 3 conductor shielded cable:
|
| Cable length |
|
| Weight | 0.1 kg (0.2 pounds) |
| Dimensions |
|
| Materials | |
| Cable | 3 conductor 22 AWG, with overall foil shield and drain wire, chrome PVC jacket |
| Enclosure | Weatherproof black ABS |
For Software downloads and details click here
