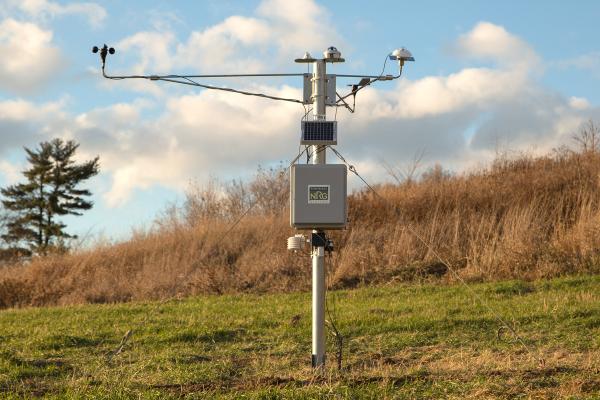

Solar Resource Assesment

SRA SYSTEM

Measure the potential of your utility-scale solar PV project with the SRA System from RNRG.

For More information Click Here

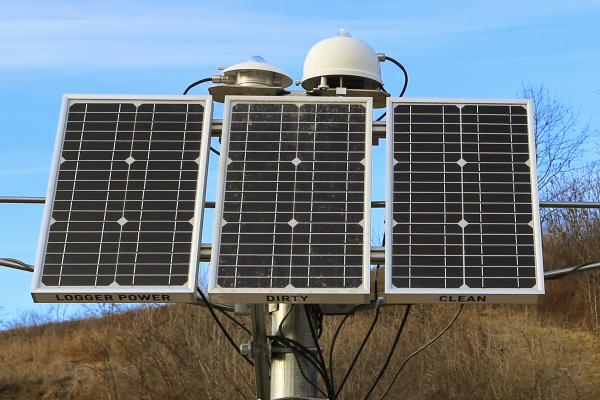

SRA-Soiling-Station

Soiling Measurement Kit

Quantify the site-specific impacts of soiling on prospective and current PV projects with RNRG's Soiling Measurement Kit.

For More information Click Here



Solar Resource Assesment

Solar Resource Assessment (SRA) refers to the systematic collection of site-specific meteorological data for the purpose of accurately estimating a prospective solar farm’s annual energy production (AEP).





System Features


  • Field-proven, integrated components measure all relevant meteorological conditions including solar radiation, wind speed and direction, temperature, and precipitation
  • Comprehensive reference data can be used to provide an accurate estimate of your solar project’s potential to improve your project risk profile
  • Adjustable plane-of-array (POA) booms allow pyranometers to measure the solar resource at the angle of the prospective PV array
  • Reliable and proven SymphoniePLUS®3 data logger stores up to two years of data on a non-volatile SD Flash memory card
  • Guyed steel tube tower construction
  • Remote data transfer options using NRG Systems iPackGPS communication modules
  • Easy to transport, assemble, install, and redeploy to other locations

System Options


Pyranometers
  • Hukseflux LP02 thermopile pyranometers – compliant to ISO 9060 and 9847, WMO (World Meteorological Organization), and ASTM E824-94
  • LI-COR #LI-200SZ photodiode pyranometers – traceable to the World Radiation Reference at the World Radiation Center in Davos, Switzerland
Communication Modules
  • Symphonie iPackGPS with PV kit – GSM cellular
  • Symphonie iPackGPS with PV kit – CDMA cellular
  • Symphonie iPackGPS for Iridium Satellite with PV kit and 400 bundled service minutes
  • Symphonie iPack with PV only
Additional Sensors
  • NRG Systems #BP20 barometric pressure sensor
  • NRG Systems RH5X relative humidity sensor
